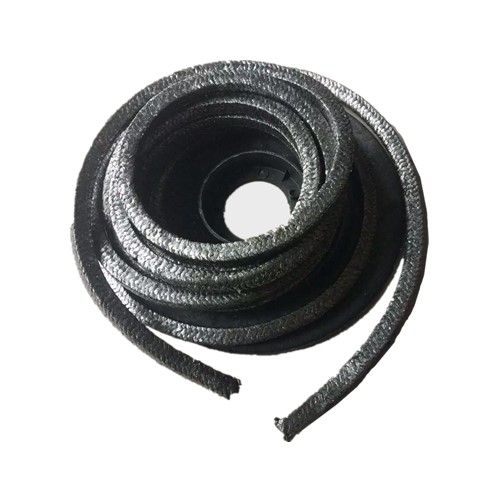

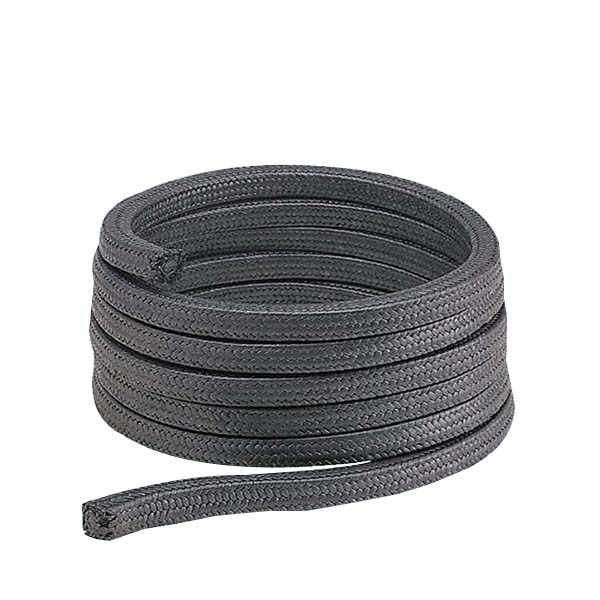

1.Asbestos graphite packing is braided of dust free asbestos yarns,then impregnated with dry graphite,finally coated with pure graphite. (Stainless steel or copper wire reinforced is also available)
2.It is resilient,compact,lubricated,high temperature and pressure resistant packing .
3.It's mainly used in dynamic sealing,such as pumps and valves which are under high temperature and pressure condition.
4.Suitable for mediums of alkali solution, viscous liquid, water, steam, gas, and salt.
5.Speed:4-10m/s.
6.Working pressure:0-10MPa.
7.Working temperature: 450℃.
8.Dimenssion: 4*4mm ~ 50*50mm
9.PH range:4-10.
10.Density:1.4-1.6g/cm3
11.Weight:5-20kg/Roll.
12.Package:Plastic bag and carton.
