Description

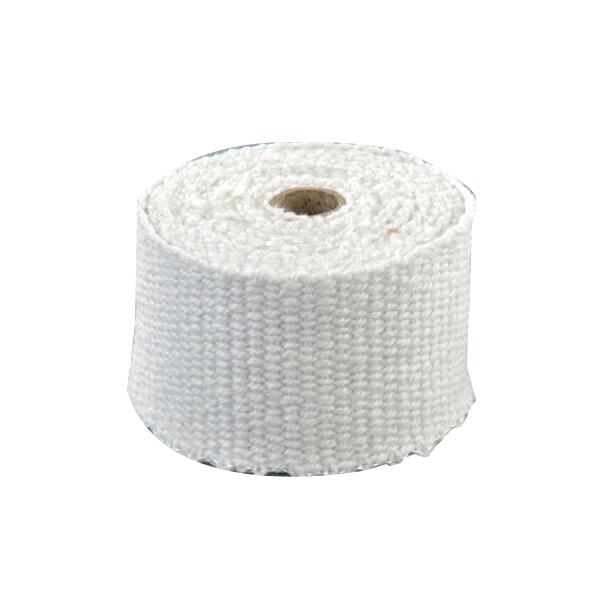

1.Ceramic fiber tape is woven of high quality ceramic fiber yarn.
2.It can be used for high temperature resistance applications(up to 2300 F).
3.It can be reinforced with fiberglass wire or inconel/alloy steel wire.
4.Loss on ignition:Less than 15%.
5.Working temperature: 1260 ℃.
6.Density: 500-550 kg/m3.
7.Length: 10-30 m/roll.
8.Width: 25-200 mm.
9.Thickness: 2-5 mm.
Application:
Further details are avaliable by contacting us.
2.It can be used for high temperature resistance applications(up to 2300 F).
3.It can be reinforced with fiberglass wire or inconel/alloy steel wire.
4.Loss on ignition:Less than 15%.
5.Working temperature: 1260 ℃.
6.Density: 500-550 kg/m3.
7.Length: 10-30 m/roll.
8.Width: 25-200 mm.
9.Thickness: 2-5 mm.
Application:
1.Heat insulation furnace curtain, large area thermal insulation.
2.Radiant heat shielding
3.Flexible fabric expansion joints for high temperature piping.
4. Safety blankets, protective and insulating covers, gaskets, cable or pipe wrapping, etc.
Specification:
| Classification temperature | 1260 | |||
| Product | 1260 Ceramic fiber cloth | 1260 Ceramic fiber tape | ||
| Service temperature(C) | 450 | 1000 | 450 | 1000 |
| Basic material | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber |
| Fiberglass reinforced | stainless steel reinforced | fiberglass reinforced | stainless steel reinforced | |
| Theoretical density(kg/m3) | 500±15 | 500±30 | ||
| Specification(mm) | 30000x100x2/3 | 30000x75x2 | ||
| Moisture content(%) | ≤2 | |||
| Warp density | 48-60piece/10cm | |||
| Weft density | 21-30piece/10cm | |||
| Delivery state | Roll | |||
| Organic content(%) |
≤15 |
|||
Further details are avaliable by contacting us.
